M55-8204042

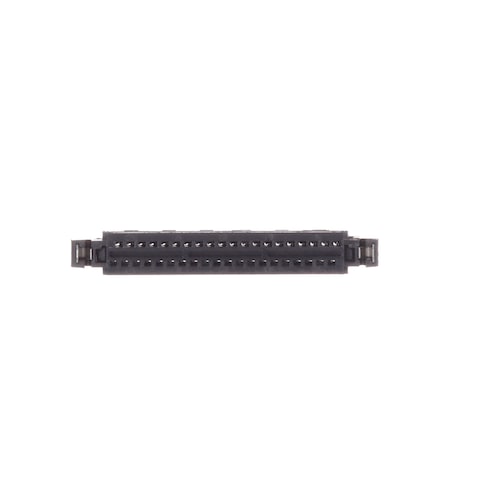

Name: Harwin M55-8204042
Brand: Harwin
SKU: 855-M55-8204042
Price: 6.69 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

855-M55-8204042

Mfr. No:

M55-8204042

Mfr.:

Harwin

Description:

Headers & Wire Housings Archer Kontrol 20+20 Pos. Female DIL IDC Cable Connector

Datasheet:

M55-8204042 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Harwin M55-8204042

In Stock: 922

Stock:: 922 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 11 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

€-.--

Ext. Price:

€-.--

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	€6.69	€6.69
	€5.86	€58.60
	€5.26	€157.80
	€5.16	€309.60
	€4.78	€573.60
	€4.71	€1,271.70

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Harwin
Product Category:	Headers & Wire Housings
RoHS:
Product:	Connectors
Number of Positions:	40 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	2 Row
Mounting Style:	PCB Mount
Termination Style:	IDC
Mounting Angle:	Right Angle
Contact Gender:	Socket (Female)
Contact Plating:	Gold
Series:	M55
Tradename:	Archer Kontrol
Wire Gauge:	30 AWG
Minimum Operating Temperature:	- 20 C
Maximum Operating Temperature:	+ 105 C
Brand:	Harwin
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	500 mA
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	30
Subcategory:	Headers & Wire Housings

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

M55-8204042 Datasheet (PDF)

Product Catalogs

Product Catalog (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Kontrol IDC Cable Connectors

Harwin Kontrol IDC Cable Connectors are double-row female connectors with 12 to 80 positions and an IDC cable connection. The connector housings feature a latch for quick and secure mating to the male half. The latch also provides strain relief and vibration resistance. These fully shrouded and polarized connectors offer a horizontal cable exit for a reduced height, gold finish on the contact area, and tin finish on the terminations. Other features include 0.5A maximum per contact, 1GΩ minimum insulation resistance, and an operating temperature range of -20°C to +105°C. Harwin Kontrol IDC Cable Connectors are suitable for 30AWG ribbon cables with a 0.635mm pitch. This series is ideal for applications such as handheld equipment, industrial equipment, and transport systems.
