Abracon ABM12N Quartz Crystals

Abracon ABM12N Quartz Crystals are IoT-optimized ultra-miniature AT-Cut MHz quartz crystals offered in a 1.6mm x 1.2mm x 0.4mm four-pad SMD package. These crystals offer a tight frequency accuracy of ±10ppm and stability of ±15ppm over an operating temperature range of -40°C to 85°C. The ABM12N quartz crystals feature a low plating load of 4pF (CL) with an optimized Equivalent Series Resistance (ESR). The ABM12N crystals offer industry-standard frequencies common for wearables, IoT, Bluetooth / Bluetooth Low Energy (BLE), and ultra-low power MCUs/SoCs/transceivers end applications.

Features

  • Optimized for energy-saving wearables and IoT applications
  • Plated at an exceptionally low plating capacitance of 4pF with optimized ESR
  • 0.4mm maximum height is ideally suited for height-constrained designs
  • Seam sealed for long-term reliability
  • 500MΩ insulation resistance
  • -40°C to 85°C operating temperature range
  • 1.6mm x 1.2mm x 0.4mm four-pad SMD package
  • REACH and RoHS compliant

Applications

  • Wearables
  • Wireless modules
  • Internet of Things (IoT)
  • Bluetooth / Bluetooth Low Energy (BLE)
  • Machine-to-Machine (M2M) connectivity
  • Ultra-low power MCUs, SoCs, and transceivers
  • Near Field Communication (NFC)
  • ISM band applications

Mechanical Dimensions

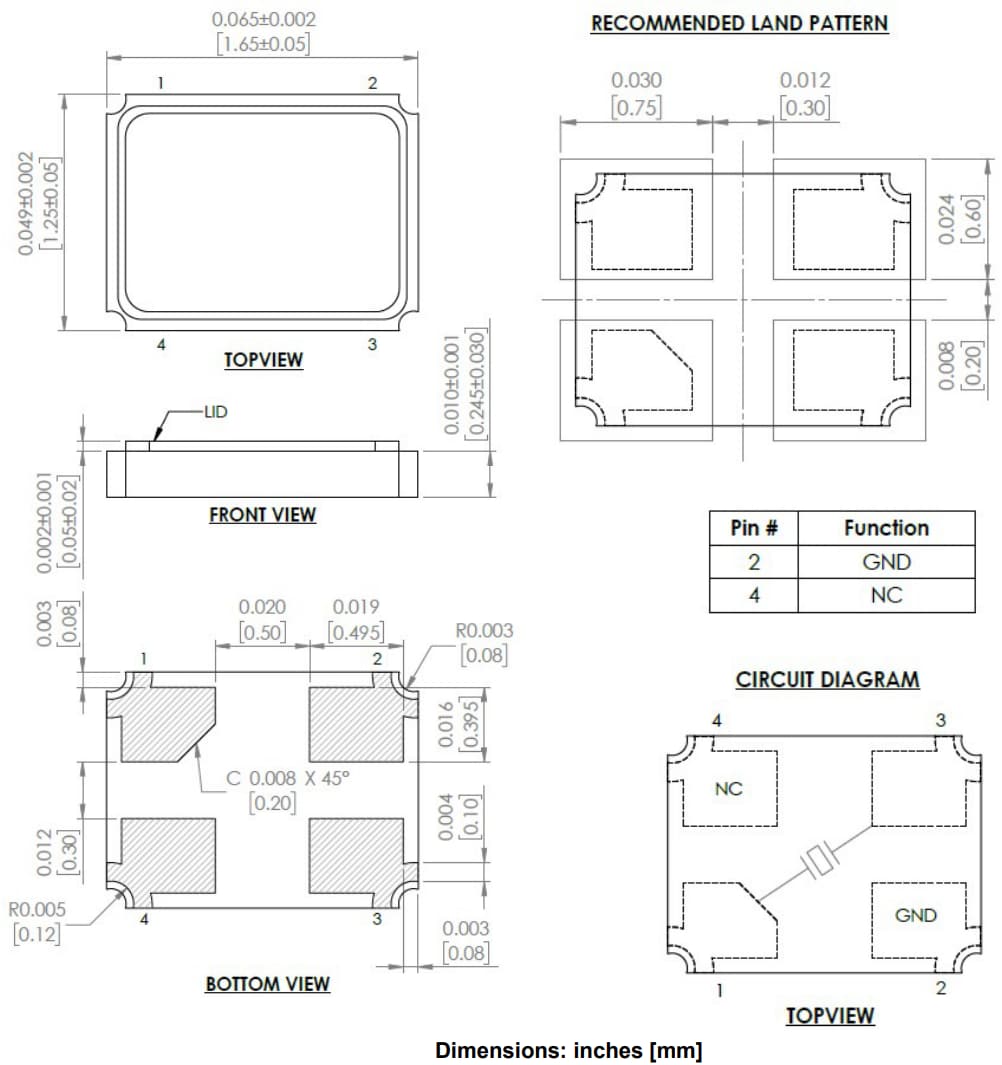

Mechanical Drawing - Abracon ABM12N Quartz Crystals
