Epson Timing TSX-3225 Series Miniature MHz Range Crystal Units

Epson TSX-3225 Series Miniature MHz Range Crystal Units are SMD that offer a frequency range of 16MHz to 48MHz and a miniature, low profile size of 3.2 x 2.5 x 0.6t (mm). The TSX-3225 Series offers a Fundamental overtone order and is ideal for mobile phones, Bluetooth, W-LAN ISM band radio, and as a clock for MPU.

Features

  • Fundamental overtone order
  • 3.2mm x 2.5mm x 0.6mm Package size

Applications

  • Mobile phone
  • BLUETOOTH®
  • W-LAN ISM band radio
  • Clock for MPU

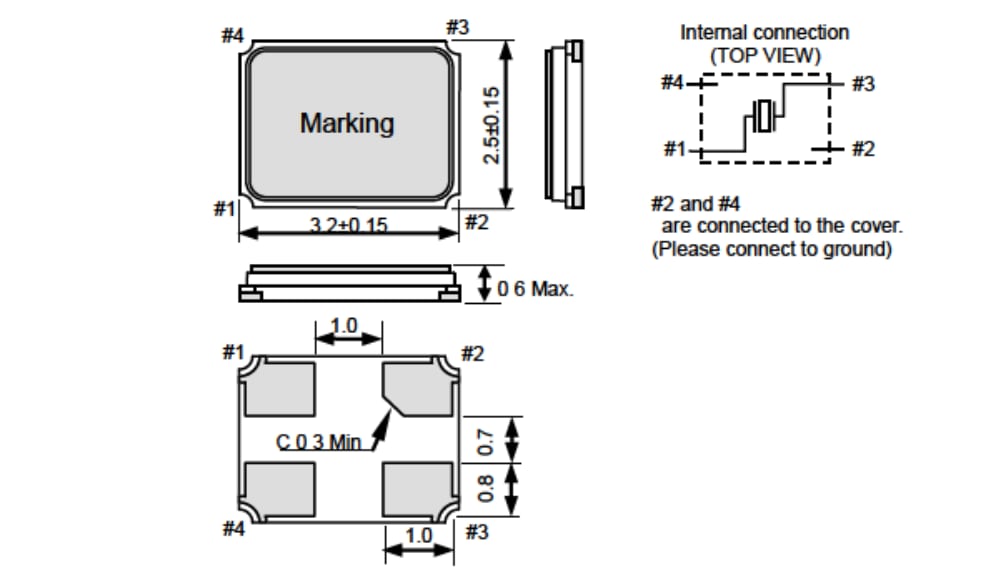

Dimensions (mm)

Mechanical Drawing - Epson Timing TSX-3225 Series Miniature MHz Range Crystal Units
Published: 2010-12-06 | Updated: 2022-03-29
