Littelfuse 508 Lead-Free 3AB Fuses

Littelfuse 508 Lead-Free 3AB Fuses are ceramic fuses rated up to 1000VAC/VDC with outstanding circuit interrupting capability in a compact 6.3mm x 32mm package. These fuses are available in cartridge and axial-lead versions with an interrupting capability of 10kA. Littelfuse 508 Lead-Free 3AB Fuses are RoHS compliant, lead free, and constructed in accordance with Underwriter’s Laboratories Standard UL 248-14. The 508 series is ideal for use as supplementary protection in appliances or utilization equipment to provide individual protection for components or internal circuits.

Features

  • In accordance with Underwriter's Laboratories Standard UL 248-14
  • Available in cartridge and axial lead
  • Superior interrupting rating of 10kA
  • Compact form factor measures 6.3mm x 32mm
  • RoHs compliant
  • Lead free

Applications

  • Supplementary protection
    • Appliances
    • Utilization equipment
  • Provide individual protection for components or internal circuits

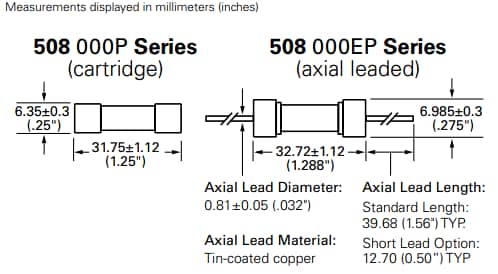

Dimensions

Littelfuse 508 Lead-Free 3AB Fuses
Published: 2011-01-21 | Updated: 2022-03-11
