Micro Commercial Components (MCC) Automotive-Grade 150mW Zener Diodes

Micro Commercial Components (MCC) Automotive-Grade 150mW Zener Diodes are designed to protect auto and industrial applications with versatile and cost-effective solutions. These Zener diodes operate at 2.4V to 47V nominal Zener voltage range and up to 150°C junction temperature. MCC’s auto-grade 150mW Zener diode family features durable protection with compactness, affordability, and versatility for many applications. These diodes are AEC-Q101 qualified and come in a compact DFN1006 package with 1mm x 0.6mm package dimensions and are used in applications where space is limited. The Automotive-Grade 150mW Zener diodes are suitable for applications in automotive, industrial, and renewable energy.

Features

AEC-Q101 qualified for reliability and durability in auto and other applications
Up to 150°C high operating junction temperature
2.4V to 47V wide selection of voltage range
Affordable solution, ensuring stable voltage levels and consistent operation for various electronic components
Overvoltage protection:
- Prevent damage from excessive voltage and improve overall reliability by safeguarding sensitive components

Low leakage current

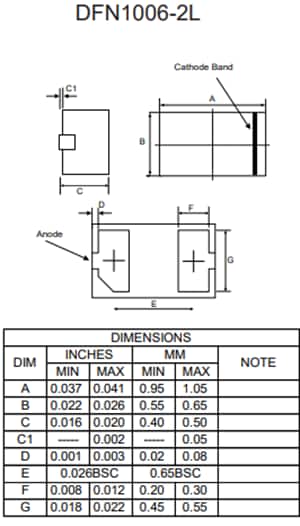

Compact and versatile design with compact DFN1006 package measuring only 1mm x 0.6mm
High reliability and durability
RoHS-compliant (lead-free)

Applications

Automotive:
- Engine Control Units (ECUs)
- Power management systems
- Battery charging circuits
- Lighting systems
- Audio systems
- Instrument clusters
Industrial:
- Power supplies and converters
- Industrial control systems
- Programmable Logic Controllers (PLCs)
- Motor control circuits
- Robotics and automation systems
- HVAC controls
